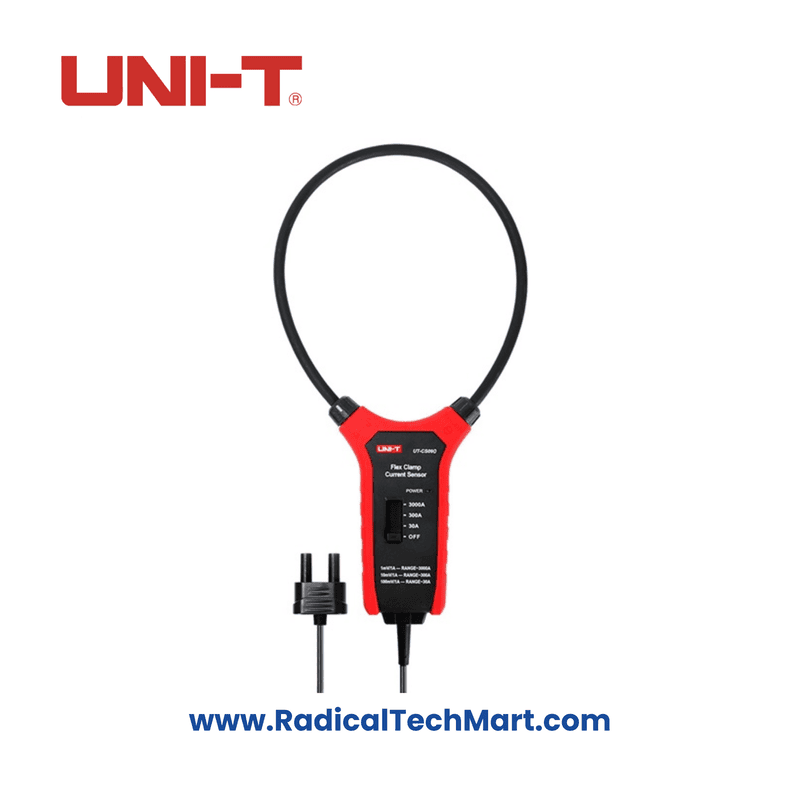

UNI-T UT-CS09D Flex Clamp Sensor

The UT-CS09D flex clamp sensor is designed to provide accurate measurements of high-current conductors in tight spaces. Featuring a Rogowski coil-based current sensor, it offers stable, safe, and highly reliable measurements, capable of handling currents up to 3000A. Its unique design and lightweight nature make it an ideal choice for professional electricians.

Key Features:

• Measures current ranging from 1.5A to 3000A.
• Drop-proof design with a 1m drop resistance.
• Robust terminal connection for reliable operation.
• Direct current display when connected to UT206B/208BAC current meters (30A/300A/3000A).
• Frequency response range from 45Hz to 500Hz.
• Compact flex clamp size of 45.7 cm (18 inches).
• Operating temperature range: 0°C to 50°C.
• Storage temperature range: -20°C to 60°C.
• Humidity tolerance: ≤80% RH.
• Low battery indication at about 3.3V.
• Category rating: CAT IV 600V.

General Characteristics:

• Powered by 3 x 1.5V R03 batteries.
• Product net weight: 260g.
• Product dimensions: 267mm x 119.4mm x 34mm.
• Standard accessories include batteries, BNC adapter, and an English manual.
• Individual packing in blister packaging.
• Standard carton contains 10 pieces.
• Carton dimensions: 495mm x 405mm x 225mm.
• Carton gross weight: 7kg.

Warranty: N/A
